Smart Conference Panel
It integrates with computer, projector, TV and electronic whiteboard to easily control various conference scenes, telephone video conferences,etc. Large size screen,high definition, high contrast, high saturation and high resolution replace traditional projection display.Different screens synchronization & wireless projection, mobile phone,tablet,notebook computer screen being projected to the all-in-one display.Conference speakers can remotely move interactive content.

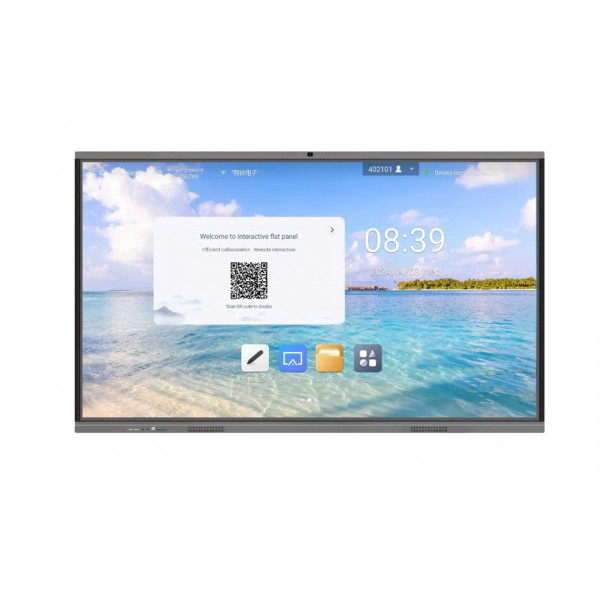

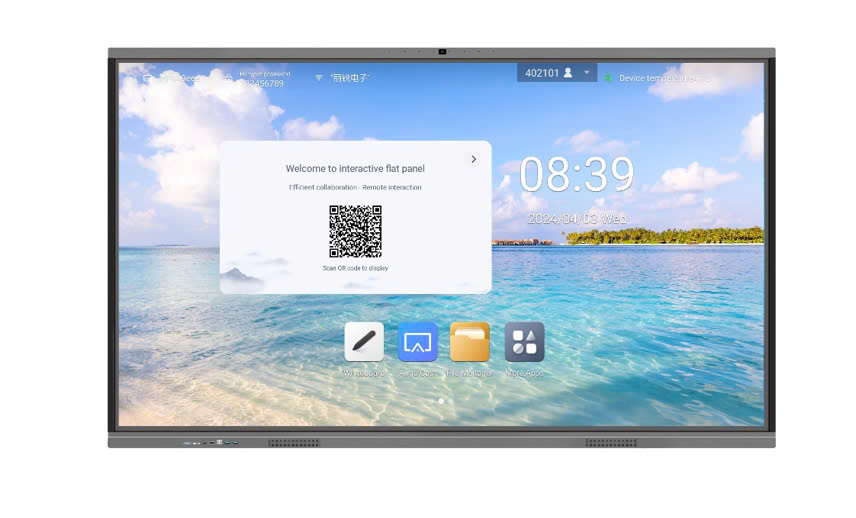

IR touch conference panel

Optional size : 65” ,  75” , 86”

· Technology: DLED

· Screen Specification:

o Resolution: 4K(3840 * 2160)

o Scanning Frequecy: 60Hz

o Aspect Ratio: 16 : 9

o Color: 1.07B color (10 bit)

o Touch: IR Recognition technology 20 touch points

o Touch Mode: Single, multi-point, click

o Interactive Type: Pen, finger,...

o Contrast: 5000 : 1

o View Angle: H=178 dergee; V=178 dergee

o Backlight Lifespan(Minimum): 60.000h

o Response: ≤ 6ms

o Brightness: 450cd / m2

· Touch Precision: ± 1mm (90% touch area)

· Speaker 2 * 16W (Built-in)

· 48M camera with QHD resolution, along with 8 2-way transceiver microphones with opoerating range of 8-10m (with noise filtering mode)

· Power Source: AC 100-240V(global), 50-60Hz

· Power Consumption: ≤450W(Max); Standby: ≤0.5W

· Screen Surface: Ant-glare tempered glass, 4mm thickness,7h hardness for high durability against impact and scratches

· Connection Ports:

o Input Ports: HDMI * 3 (Front * 1); VGA * 1; Audio * 1; DP * 1; RJ45 * 1; TF Card * 1; USB-A * 1; USB-B * 2 (Front * 1); OPS Slot * 1; Mic * 1; RS232 * 1

o Output Ports: HDMI * 1; Coax * 1; Line Out * 1; RJ45 * 1

o Front Port: HDMI * 1; USB-C * 1; USB-A * 3; USB-B * 1

· Operating System: Android 12.0 built-in (Ram 8GB / Rom 128GB)

· CPU: ARM Cortex-A55 * 8 @1.5GHz; GPU: Quad-core Mali-G52@600M

· Network: LAN, Wifi 5 (2.4G / 5G)

· Kernel Version: 5.10

· Bluetooth 5.0

· Free Genuine Accessories Included with the Screen: HDMI cable: 5m; Power cord: 1.5m; 1 USB cable withe 1 touch port plug: 1; Touch pen: 1; Remote control: 1
