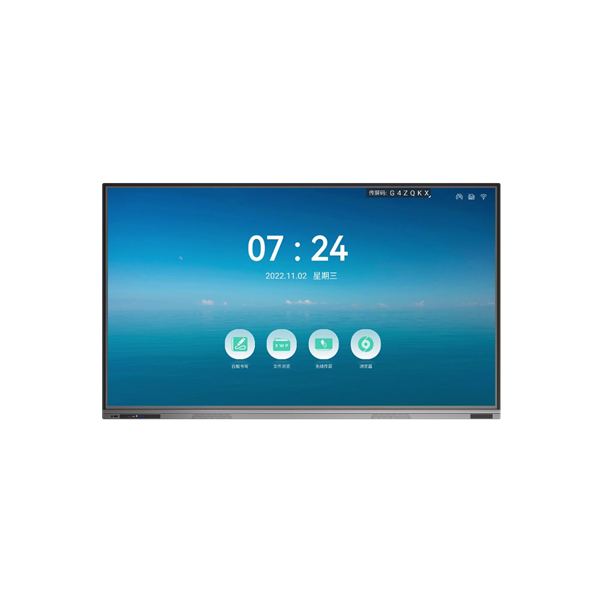

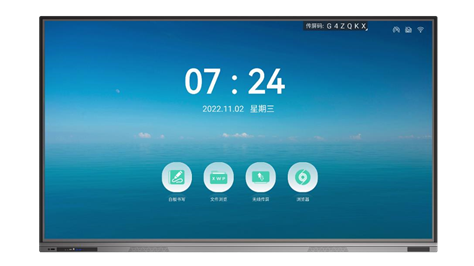

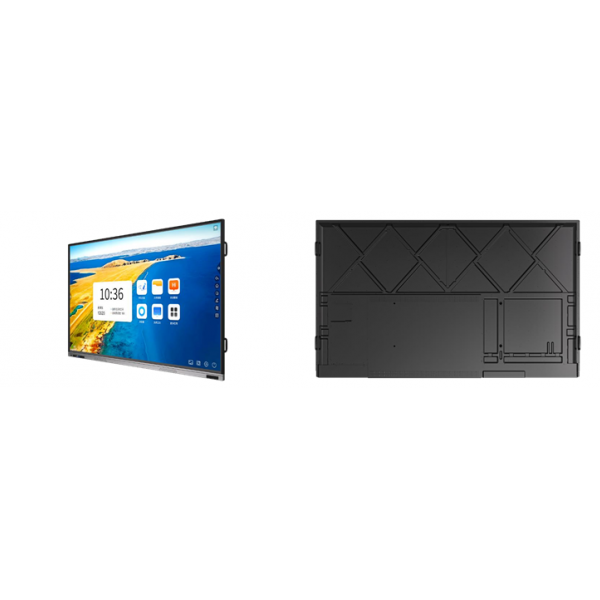

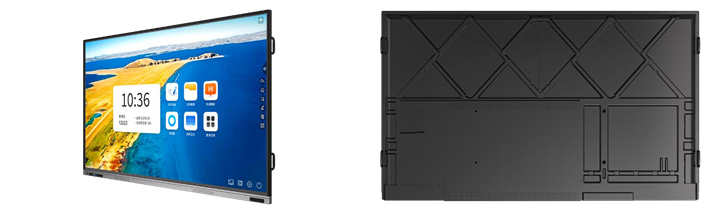

Interactive Flat Panel – IE Series

EIBOARD Interactive Flat Panel IE series, as an interactive whiteboard, which is a large smart display board that is integrated with a computer and a tablet ,and is used as a tool for displaying and manipulating digital content. The EIBOARD interactive whiteboard is mounted on a wall or stand and functions like a traditional whiteboard +TV, but with the added benefit of interactivity.

Interactive whiteboards enable users to control and interact with digital content using touch gestures or special stylus pens. This allows the presenter or teacher to annotate and highlight materials on the board, and to collaborate with other users in real-time. Interactive whiteboards can include features such as handwriting recognition, video and audio recording, and the ability to save and share content.

They are used in educational and business settings to enhance learning and collaboration, allowing for more dynamic and engaging presentations and lessons. The interactive whiteboards with newer technologies are used in many classrooms and boardrooms, called as interactive flat panels or all in one interactive whiteboard have been increasingly popular due to their improved image quality, touch sensitivity, easy installation and fewer maintenance requirements.

Product detail Specification

Specifications

Brand : EiBoard
Sizes Available : 65"; 75"; 98; 110"
Light Source : LED
Resolution : 3840 * 2160 pixels (UHD)
Display Colors : 1.07B (10bit)
Frame Frequency : 60Hz
Brightness : 400cd/m2
Contrast Ration : 5000 : 1 (According to panel brand)
Viewing Angle : 178 dergee (H/V)
Display Protection : AG + AF 4mm tempered glass
Backlight Lifetime : 50.000 hours
OS :
- Android System : Android 11.0; 12.0 (Upgraded); CPU : Cortex A55 * 8, Max to 1.9GHz; GPU : Mali-G52 MP2 (2EE); Ram : 8G DDR4 (16G Optional); Rom : 128G (256G Optional); Wifi : 6; Wifi Hotspot 2.4G + 5G; Bluetooth 5.0
- OPS PC (Optional) : CPU I3 / I5 / I7 Series (Optional); Memory : Ram 4 / 8 / 16G (Optional); Hard Disk : 128G / 256G SSD or 500G / 1T HDD (Optional); GPU : Intel Intergrated HD Graphics; Wifi : 802.11b/g/n; Windows : Pre-install Win 10 / 11 English.
Touch Technology : IR Touch; 20 point /40 points Windows; HIB Free drive Touch points: single point, multi-point or finger-like pen-like objects.
Touch Accuracy :area accuracy ± 1mm; Main screen and sub-screen can work simultaneously.
Response Time : ≤ 6ms
Operation System : Support Win 7 / 10 / 11; Android; Mac OS;IOS; Linux
Speakers : (15W/20W )*2 / 8Ω
Input Interface : VGA*1, AUDIO*1, HDMI*3(Front1), LAN(RJ45)*1, DP*1, TYPE-C*1，
Output Interface : SPDIF*1， Earphone*1 ，HDMI OUT*2，USB OTG
Other Ports : USB3.0*3(Front*2) , USB2.0*3, TF*1, RS232*1, Touch USB*2(Front*1), OPS Slots*1, Type-C*1
Working Temperature : 0 C dergee ~ 50 C dergee
Humidity : 10 C dergee ~ 90 C dergee
Voltage : AC 100-240V, 50 / 60Hz
Max Power : ≤250W (65"); ≤300W (75"); ≤400W (86") / ≤720W ( 98" , 110")
Standby Power : ≤0.5W
Built-in Camera (Optional) : Camera 48M AI Pixel Size : 0.8 * 0.8 um; Effective Focal Length : 5.25mm; Field of View : 120 dergee optional; Wide-Angle Distortion ≤ 1.5%
Built-in Microphone (Optional) : Microphone Array 8; Linear equidistant array microphone; SNR : 74dB; Pickup distance : 10 meters; Support Fumction : Echo Cancellation, beamforming, environmental noise suppression, adaptive vocal enhancement
Frame Color : Gray / Black
Overall Size : 1490 * 906 * 85mm (65"); 1710 * 1030 * 85mm (75"); 1957 * 1170 * 85mm (86"); 2501*1513*97 mm (110")
N.W / G.W : ~ 41Kf / 52Kg (65"); ~ 56Kg / 67Kg (75"); ~ 71Kg / 82Kg; ~113.75 kg / 143 kg
Accessories : Power Cable * 1pcs; HDMI Cable * 1pcs; Touch USB Cable * 1pcs; Touch Pen * 2pcs; QR card * 1pcs; Warranty card * 1pcs; Wall Brackets * 1 set; Remote Controller * 1pcs

Multi program split screen display / Prevent unwanted interference and unintended switching on and off including remote control, from the front

Function Buttons: 8 buttons in the front

Video Format/ USB:MPEG1, MPEG2, MPEG4, H264, RM, RMVB, MOV, MJPEG/ USB2.0 Multimedia Playback: Video / Audio / Image

Security technology prevents the impact of switching on and off from the front, even with the control when not allowed.

Orther products

TV Cantilever Mount SP5

Interactive Flat Panel – M Series

Interactive Flat Panel FC-75LED

Wireless Screen Projector

Interactive Flat Panel – QG Series

Interactive Whiteboard FC-105IR

Write to us

Item Name	LED Interactive Touch Screen
LED Panel	LED Panel	65”		75”		110”
	Screen Type	LED
	Resolution	3840(H)×2160(V) (UHD)
	Color	10 bit 1.07B
	Aspect Ratio	16:9
	Active Size	1428.48*803.52mm		1649.66*927.93mm		2436.48 *1370.52mm
	Dot Pitch(H*W)	0.372*0.372		0.4296*0.4296		0.4935*0.4935
	Brightness	400cd/m2
	Contrast	5000:1 (according to panel brand)
	Viewing Angle	178° (H, V)
	Display Protection	Tempered explosion-proof glass 4 mm
	Backlight Lifetime	50,000 hours
Electrical performance	Max Power	≤250W		≤300W		≤720W
	Standby Power	≤0.5W
	Voltage	AC100-240V 50/60Hz
Operating System (Dual OS available)	Android System	Android 11.0 ( upgrade)
		CPU：8-core Cortex A55； GPU：64 bit (dual core GPU) Arm Mali-G52 MP2 (2EE)
		RAM 8GB; ROM 128G
		Network: LAN, WiFi 6
		Bluetooth 5.0
	OPS PC (Optional)	I3/i5/ i7;
		Storage: 4/8G; 128G/256 SSD or 500G/1T HDD;
		Intel integrated HD graphics
		WIFI: 802.11b/g/n
		Windows: Pre-install Win 10 Pro/Win 7
Touch	Touch Technology	IR touch; 20 points Android
	Touch Items	Main screen and sub-screen can work simultaneously.
	Response Speed	≤ 6ms
	Operation System	Support Windows7/10, Android, Mac OS, IOS Linux
TV (optional)	Image Format	PAL/SECAM/NTSC, channel storage 200
Speakers	Power	(15W/20W )*2 / 8Ω
Ports	Input Ports	VGA1, AUDIO1, HDMI3(Front1), LAN(RJ45)1, DP1, TYPE-C1，
	Output Ports	SPDIF1， Earphone1 ，HDMI OUT*2，USB OTG
	Other Ports	USB3.03(Front2) , USB2.03, TF1, RS2321, Touch USB2(Front1), OPS Slots1, Type-C*1
	Function Buttons	8 buttons in the front (1 for power.1 for signal.1 for menu,1 for home page.1 for PC,1 for eye protection,1 for screen recording,1 for wireless screen share)
Working Environment	Working temperature	0℃-40℃
	Storage temperature	- 20℃～60℃
	Working humidity	10%-90% non-condensing
Other Functions	Support dual systems: fast switching between Android and Windows systems
	Support 3-finger to call the switch button quickly from any area
	Support 5-finger to standby and wake-up screen quickly
	Front sliding door protects function buttons
	Physical ways open the functions: 1button to eye protection,1 button to wireless screen share,1 button to record
	Security technology prevents the impact of switching on and off from the front, even with the control when not allowed.
	Support F1-F12 function keys commonly used by computer keyboards
	Support one-key child lock, U disk lock function
	Support automatic identification of signal sources and switching channels
	Support QR code sharing
	Support automatic identification and classification of U disk content
	Support one-click energy saving
	Support double pen switching
	Support files transfer from mobile device to LED touch screen
	Air Vote function
	Projection software supports 4 split screens, PC projection screen supports counterattack control
	Dual programs split screen
	3 writing colors at the same time and writing available while erasing in android whiteboard software
	Insert videos and documents into android whiteboard software
Accessories	Power cable1 pcs; HDMI cable1 pcs; Touch usb cable1 pcs; Touch Pen2 pcs; QC card1 pcs; Instruction manual1 pcs; Warranty card1 pcs; Wall brackets1 set; Remote Controller*1 pcs
Items / Model No.	IB65LED-IE		IB75LED-IE		IB110ED-IE
Product dimension	149090695mm		1710103095mm		2501151397 mm
Packing dimension	16201054200mm		18451190200mm		26351635300mm
Weight	41kg/52kg		56 kg/67 kg		113.75 kg / 143 kg
